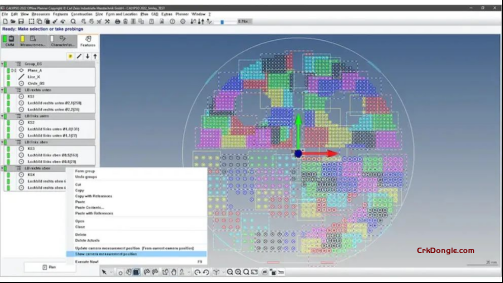

Zeiss Calypso 2025 | Advanced Dimensional Metrology & CMM Programming Software
Zeiss Calypso 2025 is the industry-leading software for programming, executing, and evaluating measurements on Coordinate Measuring Machines (CMMs). It provides a powerful, CAD-based environment for dimensional inspection, geometric tolerancing, and quality control, seamlessly integrating with the ZEISS CMM portfolio and multi-sensor systems.
Core Functionality Overview:
-
CAD-Based Programming & Measurement Planning: Direct import of 3D CAD models (e.g., STEP, IGES) for intuitive offline programming of measurement routines, including automatic feature recognition and collision-free path planning.
-
Comprehensive Geometric Dimensioning & Tolerancing (GD&T): Full support for evaluating form, orientation, location, and runout tolerances per ASME Y14.5 and ISO GPS standards, with clear graphical reporting of deviations.
-
Multi-Sensor & Advanced Analysis Integration: Coordinates data from tactile probes, optical sensors (VAST XTR), and computed tomography (CT) within a single measurement plan, with tools for statistical analysis (PiWeb) and trend monitoring.
