XGSLab Release 2024.1.1
- Completely new graphical interface based on vector graphics:
- Real and performing CAD included in the software
- No limit in handling the layout both about zooming and about rotating

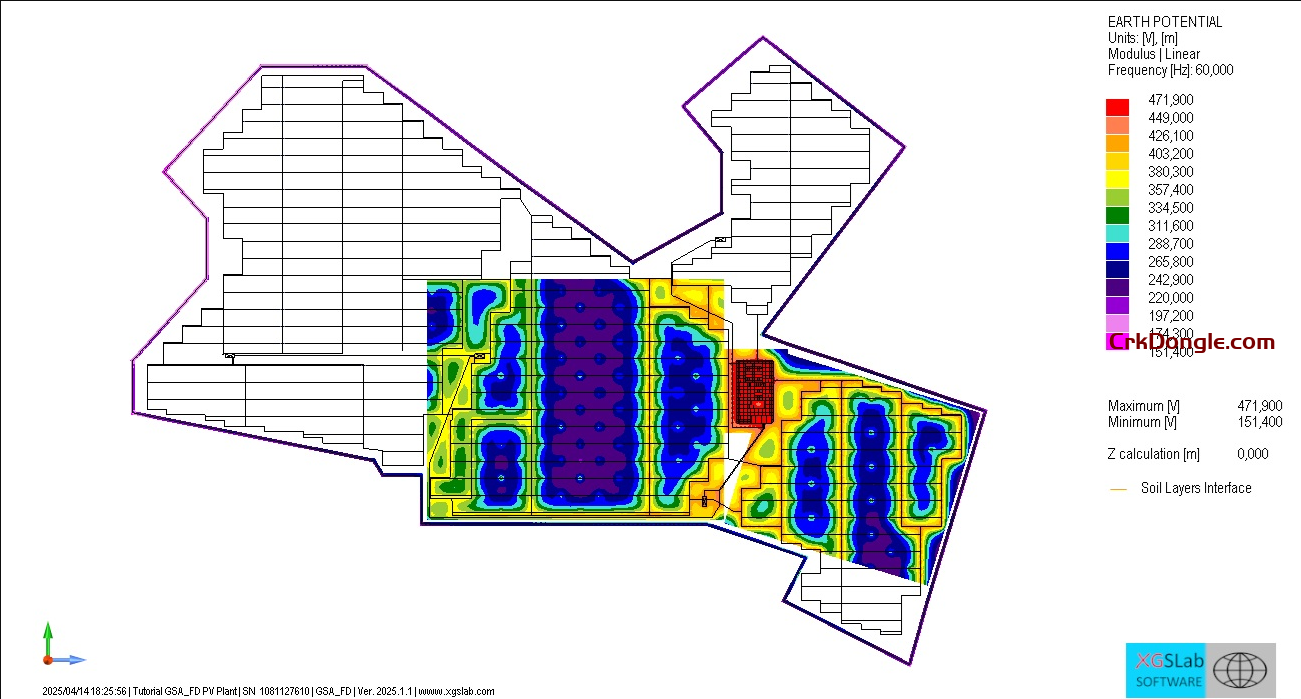

- Coloured maps and contours all included in the same view and selectable by properly enabling layers
- dwg format added to the importable formats
- importation of 3D CAD entities such as polylines 2D and 3D
- importation of complex 3D geometries for background (solids and meshes included)
- Z coordinate oriented upward in GSA, GSA_FD, XGSA_FD and SHIELD
- New scheduler features able to take data from projects to be run
- Ability to analyse the transients of multiple elements in the same graph in TD
- Minor bugs fixed
