Vic-3D v10.0 is the industry-leading software suite for three-dimensional Digital Image Correlation (3D DIC), the premier optical technique for non-contact, full-field measurement of 3D shape, displacement, and strain on any material or structure. As the natural extension of Vic-2D, it uses synchronized images from two or more calibrated cameras to reconstruct the 3D surface of a test object and track its deformation under load with exceptional precision. This allows engineers and researchers to measure complex 3D motions, large out-of-plane deformations, and strains on curved surfaces—capabilities beyond the reach of 2D systems or traditional sensors.
Core Functional Capabilities of Vic-3D v10.0
-
Accurate 3D Shape Reconstruction & Stereo Calibration
Create a precise 3D digital twin of your test specimen. The software uses advanced photogrammetric calibration to determine the exact position and orientation of the cameras, enabling the reconstruction of the object’s 3D shape at each stage of deformation from the stereo image pairs. -
Full 3D Displacement & Strain Tensor Calculation
Measure true three-dimensional deformation. Vic-3D calculates the complete 3D displacement field (U, V, W) and the full strain tensor (including normal and shear strains) across the entire visible surface, providing a complete picture of how an object deforms in space. -
Robust Analysis for Large & Complex Deformations
Handle challenging test scenarios. The software’s algorithms are designed to manage large rotations, rigid body motions, and complex surface deformations without losing track of the speckle pattern, making it suitable for tests like component bending, bulge testing, and crack propagation analysis. -
Comprehensive Visualization & Data Export

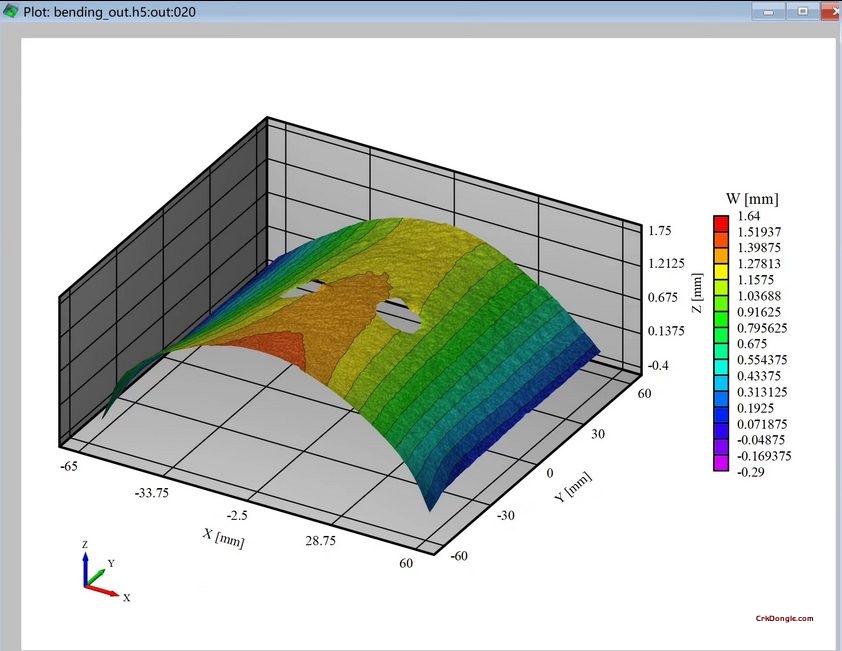

Analyze and present results effectively. Visualize data as 3D colored contour maps, vector plots, or animated deformations. Create virtual extensometers, strain gauges, and cross-sections anywhere on the 3D model, and export time-history data for direct comparison with finite element analysis (FEA) results.
The Vic-3D Standard in 3D Metrology
As the flagship 3D product from Correlated Solutions, the pioneer of commercial DIC technology, Vic-3D v10.0 represents the state of the art in experimental mechanics. It is the trusted tool for validating complex CAE simulations, characterizing advanced materials (composites, biomaterials, etc.), and solving real-world engineering problems in aerospace, automotive, and consumer product design. By providing a rich, quantitative 3D dataset of real-world behavior, it closes the loop between simulation and reality, giving engineers unparalleled confidence in their designs.
