Smap3D Plant Design 2025: Integrated 3D Plant & Piping Design Software

Smap3D Plant Design 2025 is the latest release of Smap3D GmbH’s integrated software solution for plant and pipeline design. The 2025 version introduced a completely redesigned Pipe Specification Editor and has since received two service packs (SP1, SP2) with significant workflow enhancements .

What’s New in 2025

Redesigned Pipe Specification Editor (Base Release)

The Pipe Specification Editor has been completely redesigned with a modern ribbon interface, dockable windows, and improved usability :

  • Bulk import of pipe specs and components from PartFinder

  • New “Insert selection” tab for mass data integration

  • New “Reduction table” tab for targeted editing of reduction components

  • User-specific display columns and enhanced marking/checking functions

Key Benefits

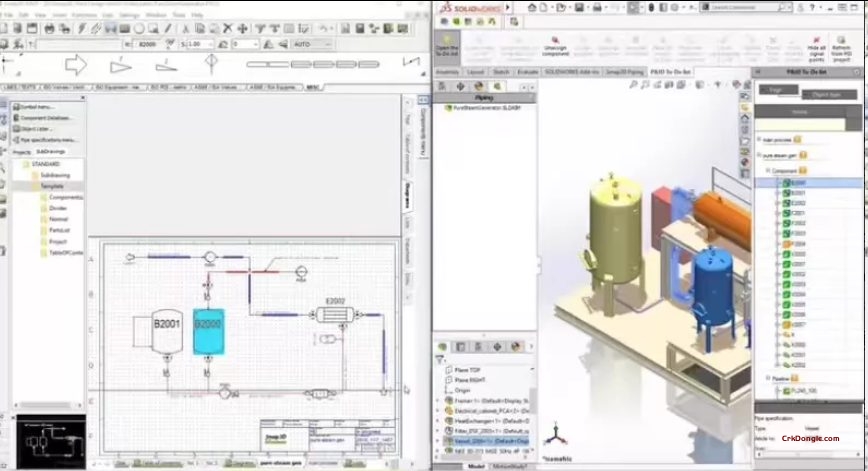

  • Integrated Workflow: Automatic data mapping from P&ID → 3D piping → isometric drawings eliminates inconsistencies

  • CAD Integration: Fully embedded in SOLIDWORKS, Inventor, and Solid Edge

  • Pipe Spec Compliance: Predefined and user-defined pipe specifications ensure code-compliant design

  • PDM/ERP Connectivity: Flexible integration with existing management systems

  • Industry 4.0 Ready: Connected Pipeshop Alliance integration with bending, collaring, and welding solutions
