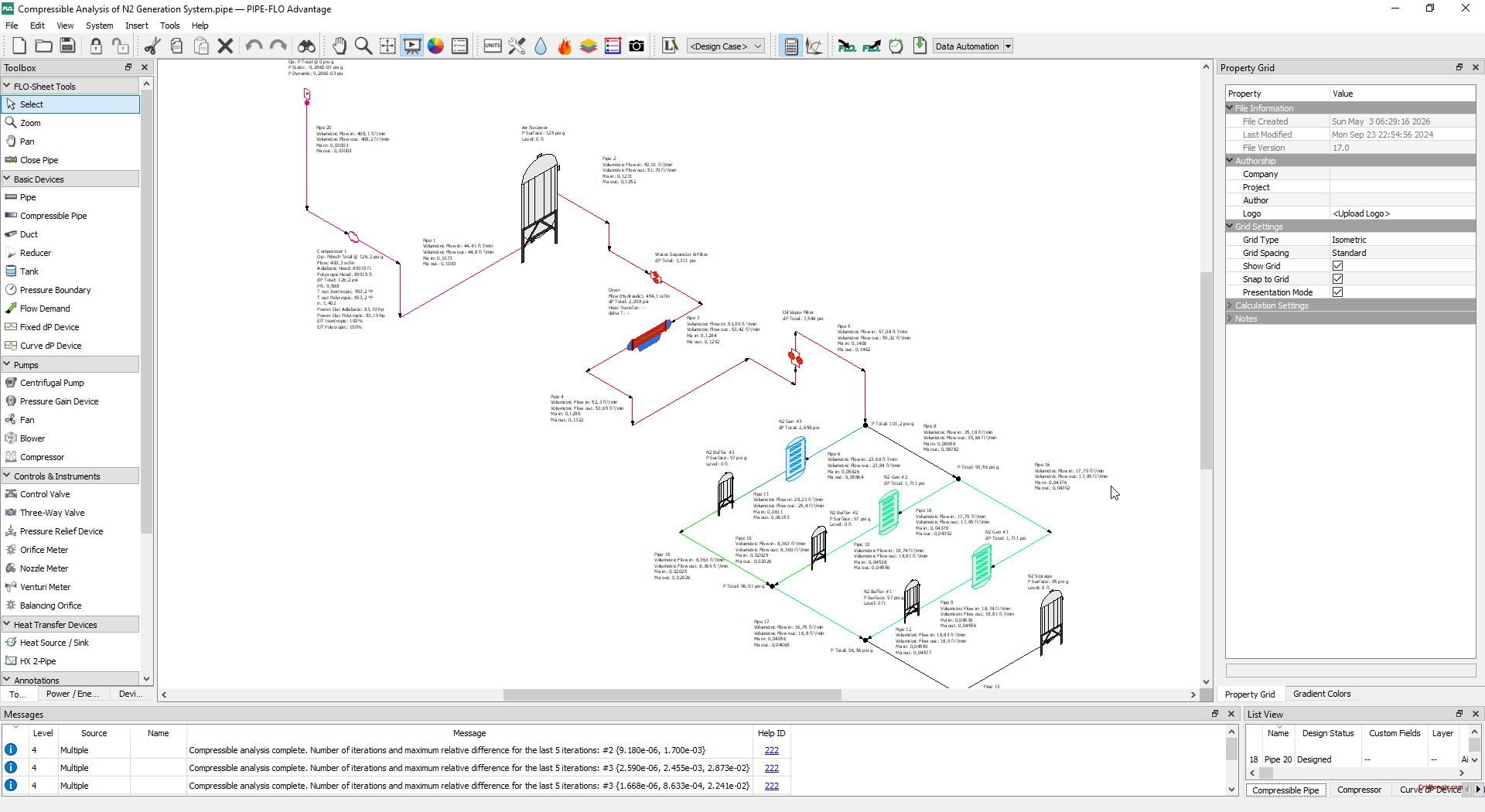

Pipe-Flo Advantage v20: Hydraulic & Compressed Gas Piping Software
Pipe-Flo Advantage v20 is the premium edition of Engineered Software’s fluid system modeling platform, designed for both hydraulic and compressed gas piping systems . It builds on the Professional edition with support for compressible fluids, making it suitable for chemical plants, industrial gas systems, and pneumatic applications.
Key New Features in v20
3-Way Valve Modeling
Version 20 introduces a dedicated 3-way valve device that simplifies models by reducing the number of control valves and pipes needed .
| Capability | Description |
|---|---|
| Single Device | Replaces multiple control valve representations with one accurate component |
| Converging Flow | Simulate mixing applications (e.g., hot/cold water blending) |
| Diverging Flow | Simulate splitting applications (e.g., HVAC zoning) |
| Group Editing | Rapid modifications across multiple valves |
| Device Library | Save common configurations for reuse |
Core Modeling Capabilities
-
Dual-Phase Support: Model both liquid (hydraulic) and compressible gas systems
-
OverTime Module: Time-based simulation of operating conditions and thermal transients
-
Digital Twin: Continuously updated system models for lifecycle management
-
Pump Selection: Integrated OEM catalogs and interactive performance comparisons
-
Scripting Module: Automate data transfer and scenario simulation
