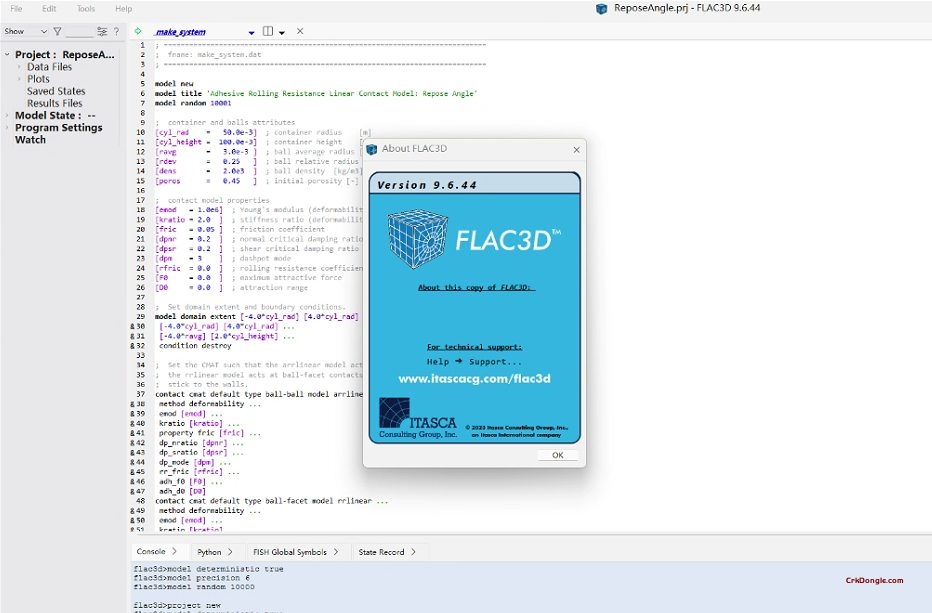

Itasca FLAC3D 9.6: Advanced Geotechnical & Mining Analysis Software
FLAC3D 9.6 is the latest major release of Itasca’s 3D numerical modeling software for advanced geotechnical and mining engineering. This version introduces significant capabilities for simulating extreme deformation, advanced structural interactions, and complex material behavior .
Key New Features in Version 9.6
Extreme Deformation & Meshless Simulation
-
Hybrid MPM Coupling (Beta): Users can now couple FLAC3D with the new MPoint3D (Beta) software, which uses the Material Point Method (MPM). This allows for seamless transitions between standard zones and material points during extreme strain, enabling accurate simulation of large-strain applications like slope runouts, dam failures, and pile penetration without mesh distortion issues .
Model Building & Automation
-
Automated Domain Generation: Eliminates the manual effort of building surrounding environments by automatically generating far-field zones around the core model, ensuring seamless zone gradation and boundary transitions .
-
Enhanced Sketch Tool: The Sketch tool now allows users to extrude 2D profiles along linear or curved paths, ideal for efficient and accurate modeling of tunnels and complex geometries .
-
Hard Nodes: New “hard nodes” ensure mesh generation precisely at specified coordinates, eliminating the need for manual geometric calculations .
New & Improved Constitutive Models
-
Munson-Dawson Creep Model: This “gold standard” model for salt mechanics has been added to simulate excavations in evaporites. It accurately predicts cavern closure and surface subsidence by accounting for time-dependent creep behavior .
-
Concrete Model for Structural Elements: Users can now assign the concrete constitutive model directly to structural support elements such as piles, shells, and liners, streamlining the modeling of soil-structure interaction .
Factor-of-Safety & Performance
-
Enhanced Safety Factor Analysis: The automated factor-of-safety analysis (shear strength reduction method) is now more flexible. Users can exclude local shear-strength-reduction zones to focus on global failures and can run analyses that include null or elastic regions .
