PVCAD Mega is a professional solar design software built specifically for engineers and designers working on photovoltaic (PV) systems. It operates as an add-on within AutoCAD to automate the creation of engineering drawings for utility-scale and commercial solar projects .
Core Functionality Overview
-
Automated Solar Layouts: Quickly place solar panels on ground-mount systems while optimizing spacing and accounting for shading .
-
Topography Integration: Automatically calculates pier schedules and adjusts the layout based on topographical constraints .
-
Structural & Electrical Analysis: Helps ensure designs meet local code requirements for wind, snow, and structural loads .
-
Bill of Materials (BOM) Generation: Auto-generates a complete list of materials needed for the project, streamlining procurement .
-
Energy Production Estimates: Uses simulation tools to predict system output based on weather, shading, and panel orientation .
-
Code Compliance: Designs are developed with adherence to standards such as NEC, ASCE, IBC, and UL .

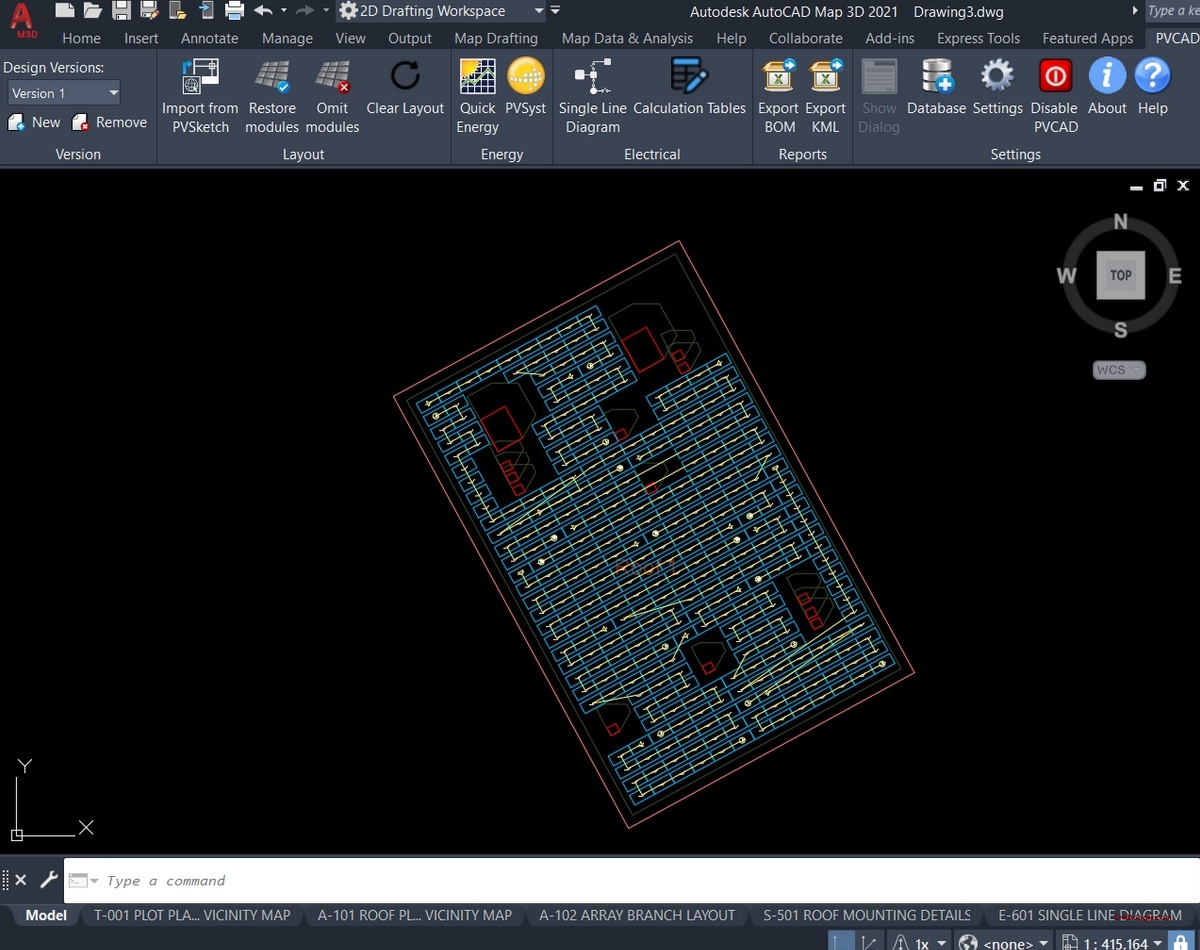

Integration with AutoCAD
PVCAD Mega is built to run directly within AutoCAD, providing a familiar drafting environment for creating detailed, precise engineering drawings . It leverages AutoCAD’s flexible platform for 2D and 3D design, allowing users to draft, annotate, and generate plans while benefiting from specialized solar design automation tools .
