CR-8000 Design Gateway
Design Gateway is a platform for logical electronic circuit design and verification of single and multi-board system-level designs. It supports a true system-level PCB design in which individual circuits can be represented and connected as blocks. The platform enables engineers to manage signal continuity (interconnects) at the system level rather than just at the design level, allowing for an evaluation of board-to-board signal continuity.
Design Gateway – Electronic Circuit Design and Verification

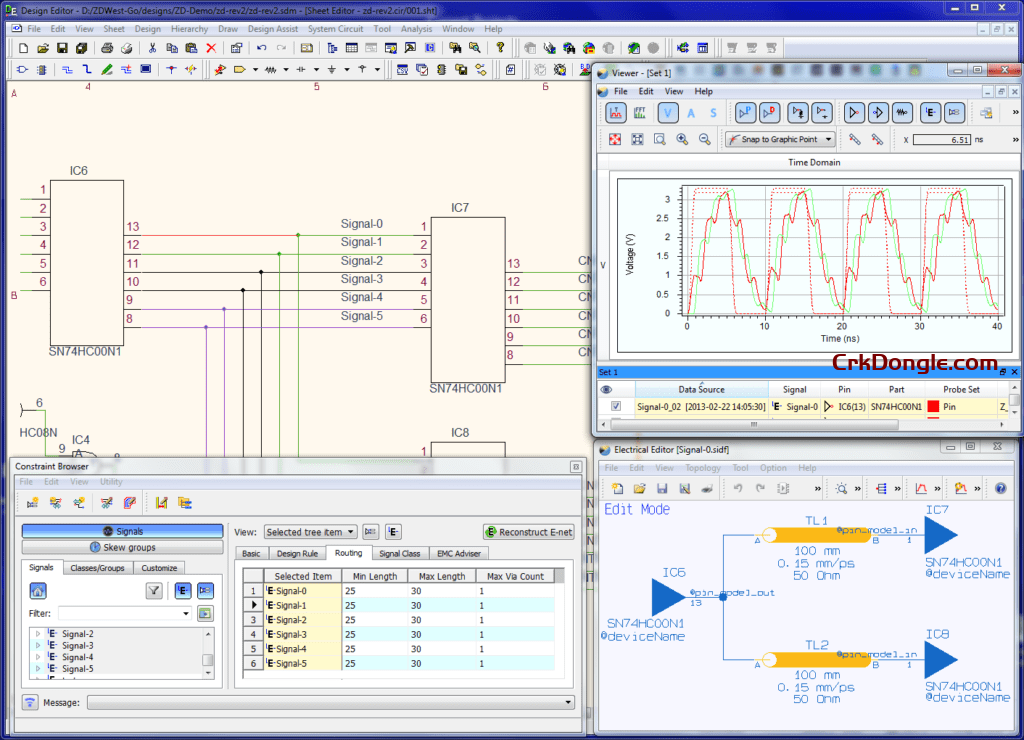

Design Gateway brings extensive design, simulation, and analysis capabilities to your desktop. It allows companies to manage and make optimal use of engineering design data across all company and team sites. Intelligent multi-board PCB design is inherently supported in Design Gateway.
The platform provides complete system-level PCB design. Native and interactive integration with a wide range of signal integrity (SI), analog, digital, and multi-technology verification tools for electronic circuits is provided. Through this, it also supports the co-simulation of analog and digital functional blocks and programmable devices. Design Gateway enables design re-use, allowing engineers to use proven and tested logical circuits from previous projects.
